3.SOAP => Communicate & Use SoapUI

This tutorial of course is an introduction to SOAP communication protocol used to communicate with a Web Service extended. The Tutorial begins with apresentation of the structure of a SOAP message. It is followed by a description of the header and body of a SOAP message.

1.SOAP Generalities

2.HelloWorld Service (SOA for Example)

3. Structure of SOAP Message:

4.SOAP Header  :

5. SOAP Body:

6.SOAP &HTTP transport

1.SOAP Generalities :

-SOAP : Simple Object Access Protocol .

-SOAP : Protocol of communication between applications based on XML langage .

-Inventor of SOAP : Microsoft & IBM .

   Comparaison :

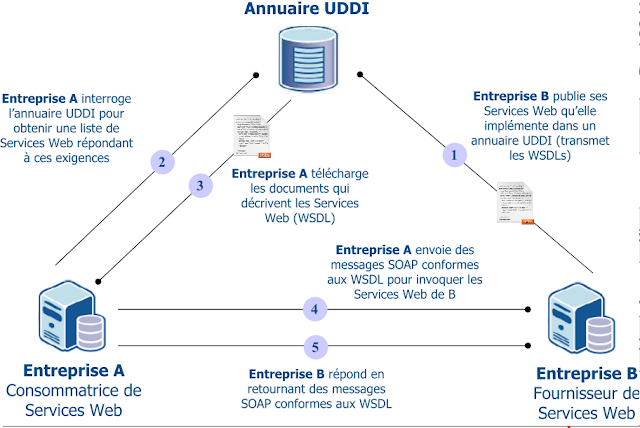

   Where's Soap Used :

1.SOAP Generalities :

-SOAP : Simple Object Access Protocol .

-SOAP : Protocol of communication between applications based on XML langage .

-A SOAP message can be transmitted to several receivers intermediary before being received by the receiver end (~ chain of responsibility)

 -A SOAP message is transported to the receiver using a transport protocol (HTTP, SMTP, ...)

2.HelloWorld Service (SOA for Example)

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:hel="http://helloworldwebservice.lisi.ensma.fr/"> <soapenv:Header /> <soapenv:Body> <hel:makeHelloWorld> <value>Abdennour Toumi</value> </hel:makeHelloWorld> </soapenv:Body> </soapenv:Envelope>	SOAP message to invoke the operation makeHelloWorld containing a value parameter
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:hel="http://helloworldwebservice.lisi.ensma.fr/"> <soapenv:Header /> <soapenv:Body> <hel:simpleHelloWorld /> </soapenv:Body> </soapenv:Envelope>	SOAP message to invoke the  operation simpleHelloWorld not containing parameter

Responses By SOAP Messages Also :

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"> <soapenv:Body> <ns2:makeHelloWorldResponse xmlns:ns2="http://helloworldwebservice.lisi.ensma.fr/"> <helloWorldResult>Hello World to Abdennour Toumi</helloWorldResult> </ns2:makeHelloWorldResponse> </soapenv:Body> </soapenv:Envelope>

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"> <soapenv:Body> <ns2:simpleHelloWorldResponse xmlns:ns2="http://helloworldwebservice.lisi.ensma.fr/"> <helloWorldResult>Hello World to everybody</helloWorldResult> </ns2:simpleHelloWorldResponse> </soapenv:Body> </soapenv:Envelope>

3. Structure of SOAP Message:

-2Parts :

        1) Header(can be optional)

        2) Body  .

-Soap Message is an envelop .

-<soapenv:Enveloppe> is the root of SOAP Message .

- the tag(Balises) and subtags must be explicitly associated to a namespace.

-SOAP Specification define 2 nameSpaces :

 =>SOAP-ENVor soapenv: http://schemas.xmlsoap.org/soap/envelope/

=>SOAP-ENC:http://schemas.xmlsoap.org/soap/encoding/

-Request & Response have the Same Message Structure.

4.SOAP Header  :

-SOAP Message Header is used to transmit additional information about this message.

SOAP : Simple Object Access Protocol .

-it's defined by : <SOAP-ENV:Header>

-Utility : TRansmit =>Authentification Info , Transaction Context ...

5. SOAP Body:

-it's defined by : <SOAP-ENV:Body>

-  <SOAP-ENV:Body>can contain either:

   >>>An error in response to a query (<SOAP-ENV:Fault> element)

   >>>or information sent to the recipient of the SOAP message which respect an encoding.

-Encoding of inofrmations is specified by WSDL Doxument :

   >>>Style Attribute(Doc|RPC)

  >>>use Attribute(encoded|litteral)

Conventions of Request Message :

1.name of struct is the name of operation .

2.Each Param of Operation is defined as sebElement of Struct Element .

Conventions of Response Message :

1.name of struct is the name of operation followed by Response

2.Each Param of Operation is defined as sebElement of Struct Element .

Example :

<!-- Request -->

<!-- Call addPersonWithComplexType -->

<!-- Parameter a complex type is defined in a structure (newPerson) -->

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"

xmlns:not="http://notebookwebservice.lisi.ensma.fr/">

<soapenv:Header />

<soapenv:Body>

<not:addPersonWithComplexType>

<newPerson>

<address>Insat TN</address>

<birthyear>23121989</birthyear>

<name>Abdennour Toumi</name>

</newPerson>

</not:addPersonWithComplexType>

</soapenv:Body>

</soapenv:Envelope>

<!-- Call addPersonWithSimpleType -->

<!-- 3 Param without complex type -->

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"

xmlns:not="http://notebookwebservice.lisi.ensma.fr/">

<soapenv:Header />

<soapenv:Body>

<not:addPersonWithSimpleType>

<name>Abdennour Toumi</name>

<address>Insat TN</address>

<birthyear>23121989</birthyear>

</not:addPersonWithSimpleType>

</soapenv:Body>

</soapenv:Envelope>

<!-- Response -->

<!-- THe Name OF operations is followed by Response -->

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">

<soapenv:Body>

<ns2:addPersonWithComplexTypeResponse

xmlns:ns2="http://notebookwebservice.lisi.ensma.fr/">

<addPersonWithComplexTypeResult>true

</addPersonWithComplexTypeResult>

</ns2:addPersonWithComplexTypeResponse>

</soapenv:Body>

</soapenv:Envelope>

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">

<soapenv:Body>

<ns2:addPersonWithSimpleTypeResponse

xmlns:ns2="http://notebookwebservice.lisi.ensma.fr/">

<addPersonWithSimpleTypeResult>true</addPersonWithSimpleTypeResult>

</ns2:addPersonWithSimpleTypeResponse>

</soapenv:Body>

</soapenv:Envelope>

6.SOAP &HTTP transport

 -Protocols used by SOAP to transport messages SOAP from sender to reciever :

 ==>>HTTP, SMTP, FTP, POP3 et NNTP.

-The request / response SOAP model is perfectly suited to model HTTP request / response .

 A.Request SOAP HTTP :

-Method (POST) need attribut SOAPAction.

POST http://localhost:8080/NotebookWebService/notebook HTTP/1.1

Content-Type: text/xml;charset=UTF-8

SOAPAction: ""

User-Agent: Jakarta Commons-HttpClient/3.1

Host: localhost:8080

Content-Length: 459

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"

xmlns:not="http://notebookwebservice.lisi.ensma.fr/">

  <soapenv:Header />

  <soapenv:Body>

    <not:addPersonWithComplexType>

      <newPerson>

        <address>Insat TN</address>

        <birthyear>23121989</birthyear>

        <name>Abdennour Toumi</name>

     </newPerson>

    </not:addPersonWithComplexType>

  </soapenv:Body>

</soapenv:Envelope>

B . Response SOAP HTTP :

-if HTTP Header Code=2** ==> Message SOAP is recieved

-if HTTP Header Code=500 ==> Error => SOAP Body Should Have <..fault..>

=========================================== =  = = =

 HTTP/1.1 200 OK

Server: Apache-Coyote/1.1

Content-Type: text/xml;charset=utf-8

Transfer-Encoding: chunked

Date: Sun, 13 Dec 2009 12:00:33 GMT

<?xml version='1.0' encoding='UTF-8'?>

<soapenv:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">

  <soapenv:Body>

    <ns2:addPersonWithComplexTypeResponse

xmlns:ns2="http://notebookwebservice.lisi.ensma.fr/">

      <addPersonWithComplexTypeResult>

             true

      </addPersonWithComplexTypeResult>

    </ns2:addPersonWithComplexTypeResponse>

  </soapenv:Body>

</soapenv:Envelope>

==================== = ================== = == = = =

 .Reference :

http://mbaron.developpez.com/
